Slab Leak Detection Chattanooga TN

A slab leak doesn’t announce itself the way a burst pipe does. The water has nowhere to go but into the substrate beneath the concrete and along the path of least resistance. By the time symptoms appear at the floor surface — a warm spot, a damp carpet edge, a sound of running water — the leak has been progressing for weeks or months. Early detection saves both the leak repair cost and the damage cost.

What Detection and Repair Costs Look Like in Chattanooga

Detection alone runs $385-$985 depending on method depth. Through-slab spot repair runs $1,850-$3,850 . Reroute via attic runs $2,850-$5,500 . Full home repipe with slab abandonment runs $8,500-$18,500 . The cost spread reflects very different repair scopes — the right answer depends on the specific leak and the home’s overall plumbing condition.

Symptoms That Tell You Water Is Moving Beneath the Concrete

The water-meter test is the cheapest and most reliable first-pass diagnostic any homeowner can run. Walk to the meter (typically curb-side in 37411 Brainerd, in the front lawn parkway), shut every fixture in the house including ice makers and humidifiers, watch the meter for 5 minutes. If the indicator triangle moves at all, water is flowing somewhere on the system.

Step-by-Step Methods Our Plumbers Use to Pinpoint Slab Leaks

Rare under-slab freeze events in mountain-elevation 37377 homes are handled separately by our frozen pipe repair team.

Acoustic, Thermal, Tracer-Gas, and Pressure Isolation Compared

Acoustic listening with a ground microphone (Fluke ALD-2, SubSurface LD-12) detects the high-frequency hiss of pressurized water escaping from a pinhole. Effective on slabs of typical residential thickness (4-6”) and works through tile, vinyl, and most carpet pad. Less effective on thick or heavily-reinforced slabs.

Thermal imaging (FLIR E8-XT, E96, T540) detects the temperature differential between hot-water lines under the slab and the surrounding concrete. The thermal halo at the leak location is brighter than the surrounding line because the water is exchanging heat directly with substrate. Effective on hot-side leaks; less effective on cold-side because the temperature differential is smaller.

Helium tracer gas (helium 95% / nitrogen 5% mix per ASTM E2106) is used when acoustic and thermal can’t pinpoint. Procedure: evacuate the suspect line, charge with tracer gas, scan the floor with a sniffer probe. The gas rises through the slab to the surface at the leak emergence point. Highly accurate but slow; deployed when other methods aren’t sufficient.

Pressure decay testing isolates which side of the system has the leak. Hot-only decay points at the hot loop; cold-only at the cold loop. Decay rate quantifies leak severity (slow vs. fast).

Acoustic Leak Listening

The ground microphone is the workhorse tool. Fluke ALD-2 deck-plate listening pad picks up vibration from the pipe wall transmitted through the slab. A trained ear discriminates leak hiss from ambient noise, HVAC, and other plumbing flow.

Best results come from listening during a quiet period — early morning before HVAC cycling peaks. Shut HVAC, refrigerator, and ice-maker systems during the listen for cleanest signal. Frequency filtering on the LD-12 helps isolate leak signal from low-frequency rumble.

Electronic Line Tracing

Pipe tracing maps the path of the supply line under the slab before pinpointing the leak location along that path. A signal generator induces a tracking signal into the copper; a receiver wand at the floor surface picks up the signal as the pipe passes underneath. Once the path is mapped, acoustic listening focuses on the path rather than scanning blind.

Thermal Imaging on Slab

The FLIR camera shows surface temperature in real time. Hot-water lines under tile or hardwood show as faintly warmer lines on the thermal image. At the leak point, the warmth concentrates because water is exchanging heat with the substrate at higher rate than along the unbroken line.

Emissivity adjustment matters — concrete, tile, and hardwood have different emissivity values that affect apparent temperature. Calibration on a known-temperature surface (your hand) before the scan provides reference.

Pressure Isolation Testing

Section isolation lets us separate the leak’s location into manageable zones. Shut at the water heater outlet to isolate hot-only; shut at the cold inlet to isolate hot+cold; shut at individual angle stops to isolate per-fixture. Decay rate at each isolation step tells us which sub-section contains the leak.

A typical decay benchmark: 1 PSI over 5 minutes is acceptable seal; faster decay indicates active leak. The rate quantifies severity — 5 PSI per minute is a major leak, 1 PSI over 30 minutes is a slow weep.

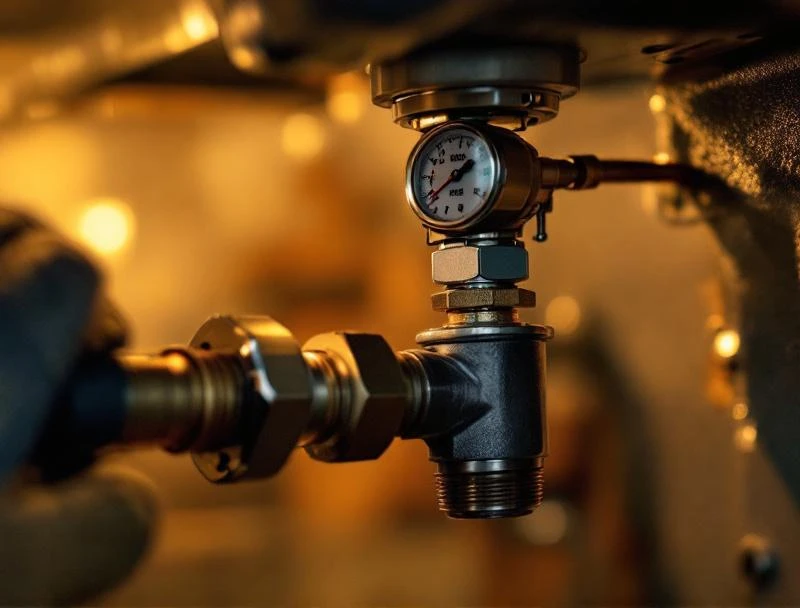

Helium Tracer Gas Detection

When other methods can’t pinpoint (thick slab, heavily-reinforced concrete, deeply-embedded line), helium tracer gas is the fallback. The procedure: shut and drain the suspect section, charge with helium-95% / nitrogen-5% mix to 30 PSI, walk the floor with a sniffer probe (SewerIn HG10 or Inficon Wey-TEK).

Helium has the smallest molecular size of any inert gas, so it migrates through small leaks that water-pressure tests might miss. The sniffer probe localizes the leak to within inches.

Slab Spot Repair

Through-slab spot repair is the lowest-cost method when the leak is at a single accessible point. The scope: mark the leak location, saw-cut the slab opening (typically 24” x 24” for working room), jackhammer down to the line, replace the affected pipe section with new copper or PEX, pressure-test, patch the slab with high-early-strength concrete tied to existing rebar.

The patched slab requires 24-48 hours to cure to full structural strength before finish floor (tile, hardwood, carpet) goes back. Total disruption: 4-8 hours of plumbing work plus 1-3 days of finish restoration.

Slab Line Rerouting

When the leak is the second or third on the same supply loop, spot repair becomes a losing strategy — the pipe is failing systemically and more leaks are coming. Rerouting abandons the under-slab line entirely. New PEX-A runs through the attic, drops down interior walls to fixture stub-outs, ties into the existing system at the manifold or supply tee.

For 37421 East Brainerd ranches with hot-water recirculation loops, the reroute typically includes a manabloc PEX manifold install with individual shut-offs for each fixture — a meaningful future-maintenance upgrade beyond just solving the current leak.

Foundation Moisture Damage Assessment

Post-leak moisture mapping with a Tramex CME-4 pinless meter shows the extent of substrate saturation. Calcium-chloride RH testing quantifies the moisture remaining in the concrete after surface drying — a key data point for whether finish floor (especially hardwood and tile with vinyl backing) can go back without trapping moisture.

Drying typically takes 3-7 days with dehumidifier and air-mover support. Floor finish replacement happens after the calcium-chloride test confirms moisture is at acceptable level.

Hot-Water-Loop Slab Leaks

Recirculation loops in 37421 East Brainerd 1995-2010 builds are the dominant Chattanooga slab-leak source. The continuous flow accelerates copper fatigue beyond what static-flow systems experience. By year 15-20, pinhole leaks emerge — usually first on the hot return line (which runs 24/7) before the supply line.

When we identify a recirc-loop slab leak, the recommended scope is full reroute of the recirc loop rather than spot repair. The other side of the loop is likely to fail within 1-3 years, so the second leak will arrive before the first repair has fully amortized.

Soft-Copper Under-Slab Repair

Under-slab supply lines are typically Type L coil copper laid on the gravel sub-base before slab pour. Tennessee Plumbing Code §305.6 requires corrosion protection (sleeve or wrap) — many 1980s Chattanooga homes were installed without compliant sleeving, which contributes to early failure rates.

Why Hot-Side Slab Leaks in 37411 Ranches Are So Common

37411 Brainerd ranches built 1955-1975 have slab-on-grade construction with under-slab copper laid before code required corrosion protection. The combination of unsleeved Type M copper, chloramine in the water, and 50+ years of thermal cycling produces a predictable failure pattern. Most leaks are hot-side because the hot loop runs hotter and cycles more.

When one leak is found in a 37411 ranch, additional leaks typically follow within 1-3 years on the same loop. The economic argument shifts in favor of full reroute via attic plus copper-line abandonment.

Above-grade leaks have a different signature — wall leak detection uses thermal and acoustic methods tuned to drywall.

Recirculation-loop slab leaks frequently overlap with water heater repair when the recirc pump is the heat source.

Tennessee Code on Re-Routing vs Spot-Repair Decisions

Tennessee Plumbing Code now permits PEX-A under-slab installation with sleeve. Most reroutes use PEX-A in the attic rather than re-installing copper because PEX-A handles thermal expansion better and isn’t subject to chloramine pitting. Manabloc manifold systems (Uponor Wirsbo, Viega) provide individual shut-offs for each fixture, simplifying future maintenance.

When Spot Repair Through the Slab Is Smarter Than Re-Routing

If water is actively pooling in the home, an active leak emergency in 37405 takes priority over scheduled detection.

Why a Warm Spot on Your Floor Means Faster Action Saves Money

A warm spot on the floor means a hot-water line is leaking under the slab and exchanging heat with the surface. Every day of leak operation pumps additional water into the substrate, expanding the moisture-damaged area, and adds to the foundation moisture remediation cost. A leak detected and repaired in week 1 typically costs $2,500-$4,500 total. The same leak ignored for 3 months runs $8,000+ once foundation drying and finish replacement enter scope.

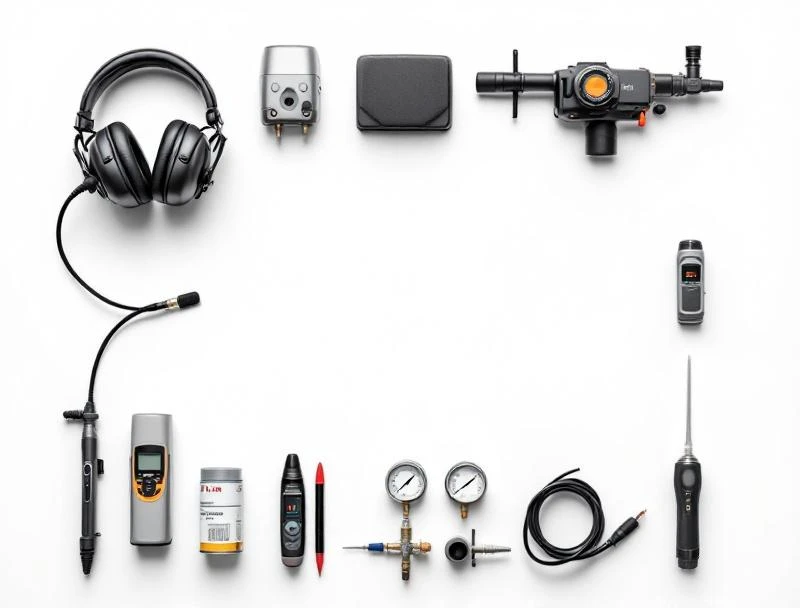

Brands & Equipment
